SBS BDL Trailer Door Lock SCHMITZ

  • Zabezpieczenia SBS
standard protection for most types of tarpaulin and refrigerated trailers.
Use:

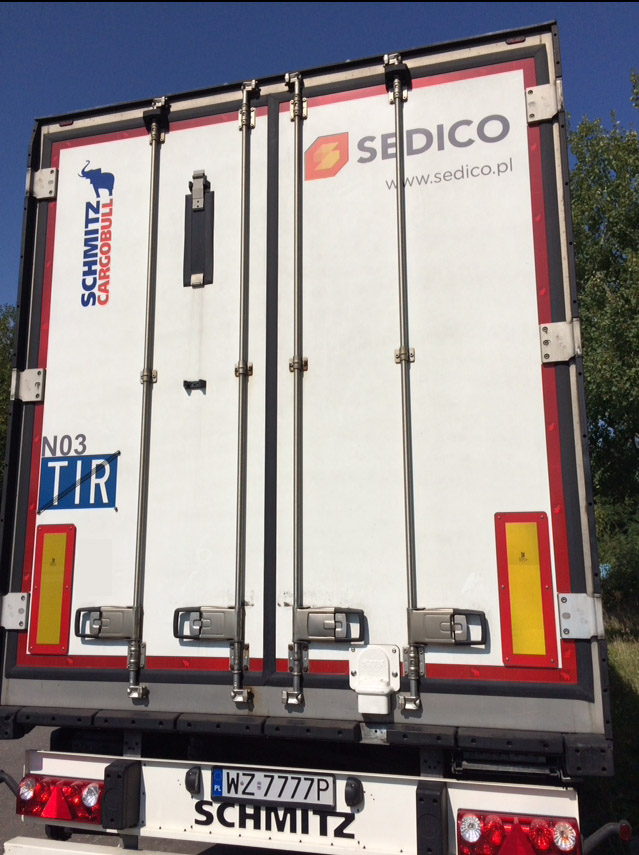

standard protection for most types of semi-trailers, roller shutter containers and cold stores. Recommended for SCHMITZ trailers
Weight:
7,30 kg
Mountage/closing time:
2h / 20 sec
Dimensions:
23 cm x 28 cm x 9 cm
Material used:
Upper casting: electro-galvanized steel, powder coated; Bottom part-closure: stainless steel (AISI-304)
Padlock/cylinder:
padlock SBS PL7000 / ABLOY PL358 / ABLOY PL358 SWP possible to use Master-Key system (one key - many solutions) or Key Alike system (the same key code)

You can buy this product on our online store: www.pvs-shop.pl

SBS BDL SCHMITZ lock  is dedicated to mostly all type of container or refigerated trailer. Effectively blocking back door. SBS BDL is equpped on high quality padlock SBS PL7000.  Optionally, it is possible to make locks in the MasterKey or KeyAlike system.

SBS BDL lock have a certificate SCM/VBV it’s also recommended by TAPA TSR level 2 & 3

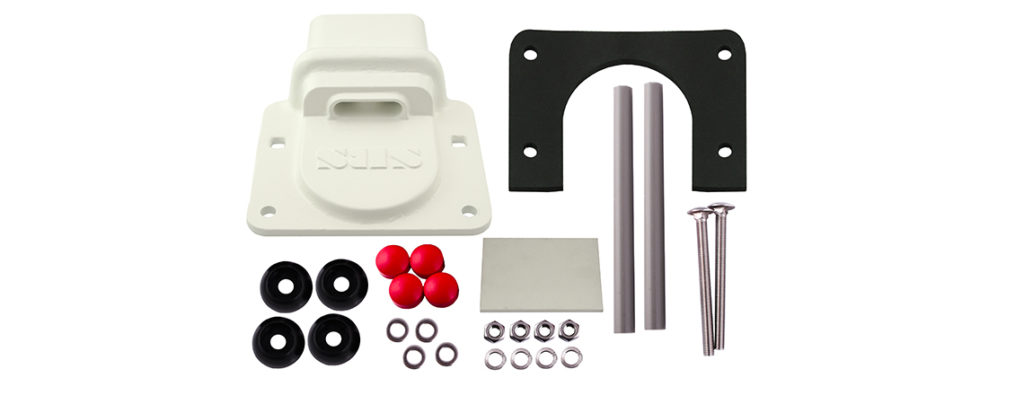

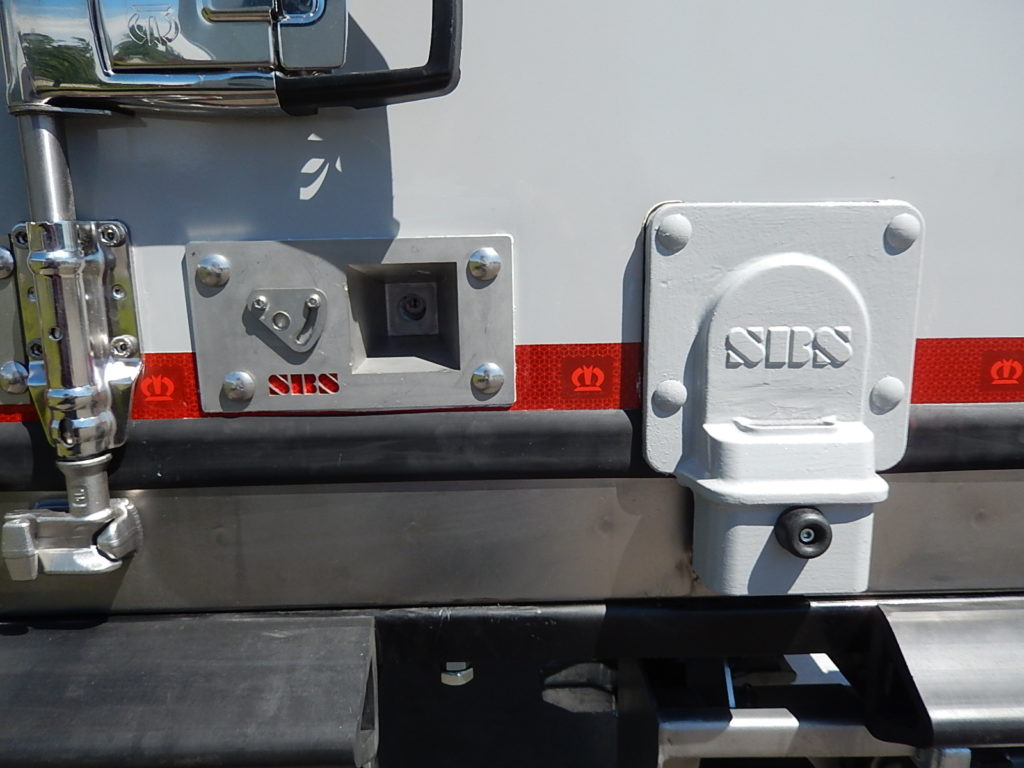

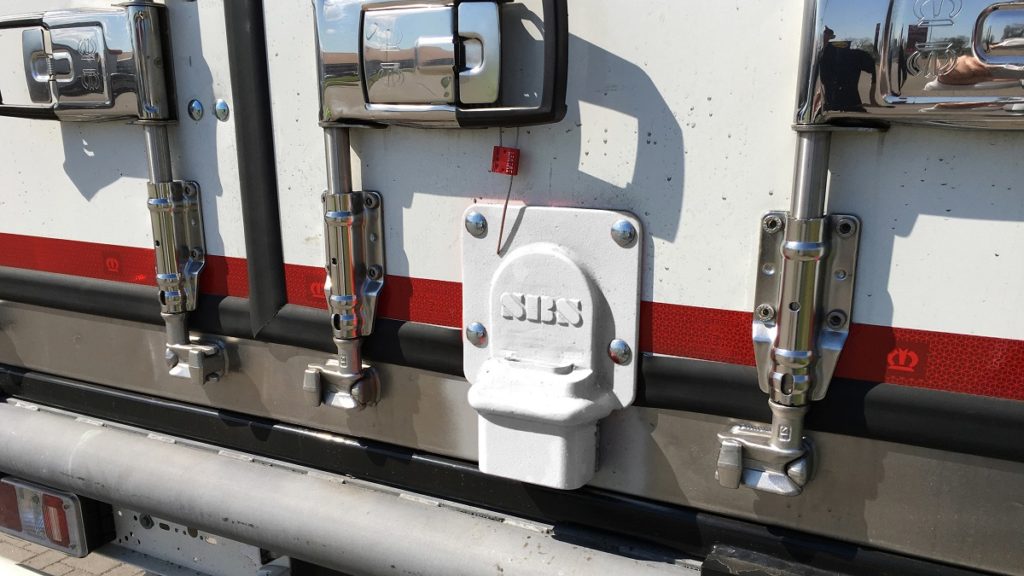

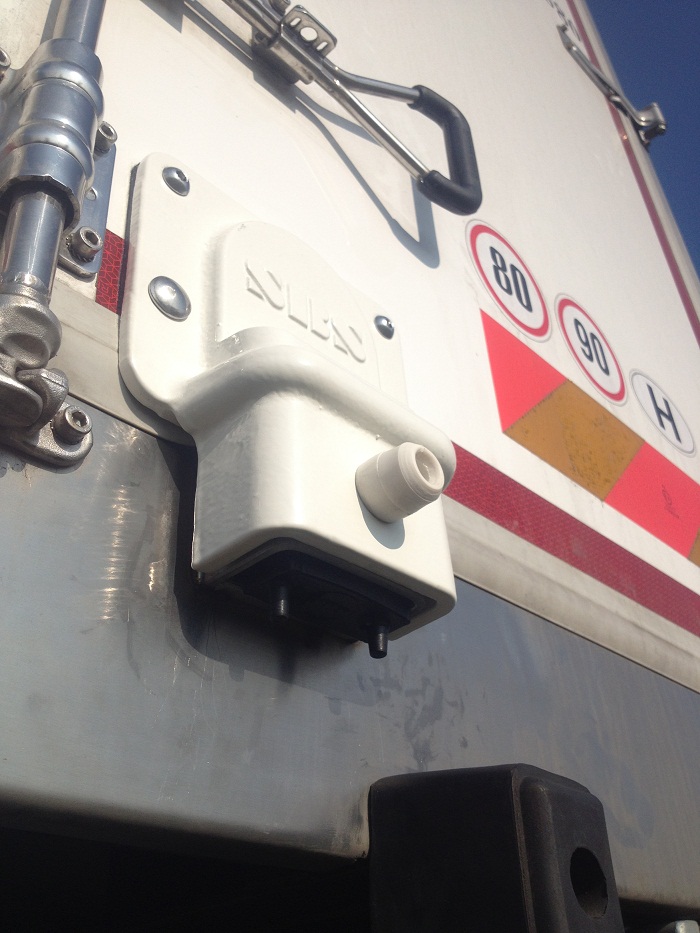

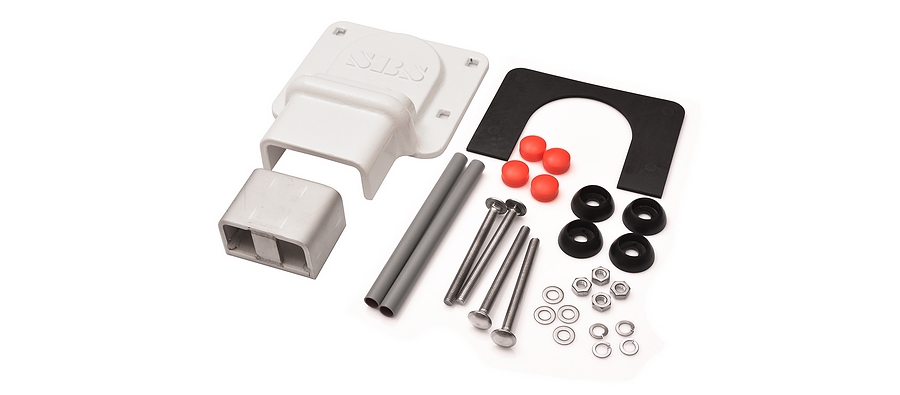

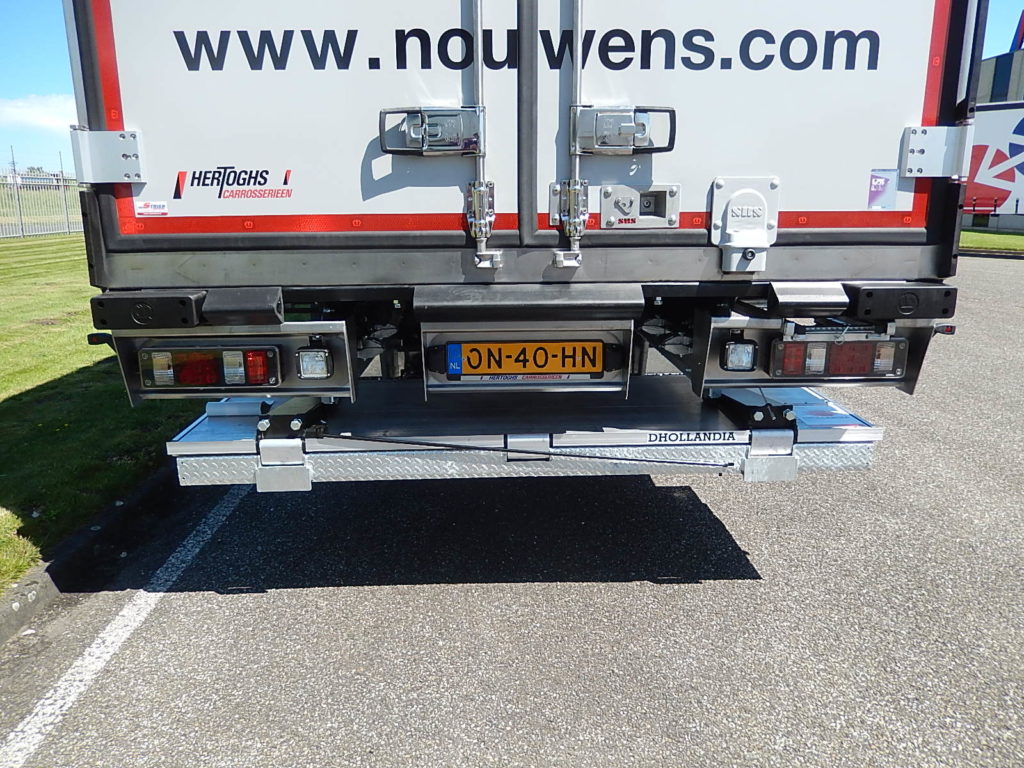

SBS BDL SCHMITZ lock it’s a standard, heavy lock for carriers of valuable goods. It’s consists of two parts:

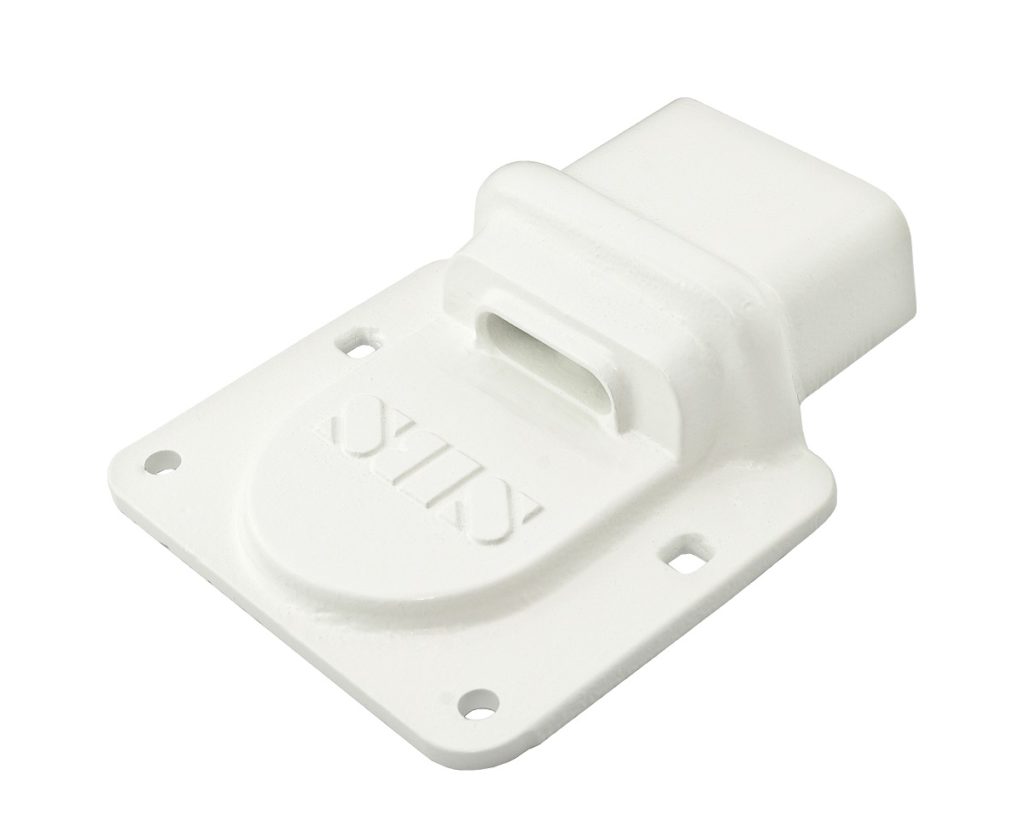

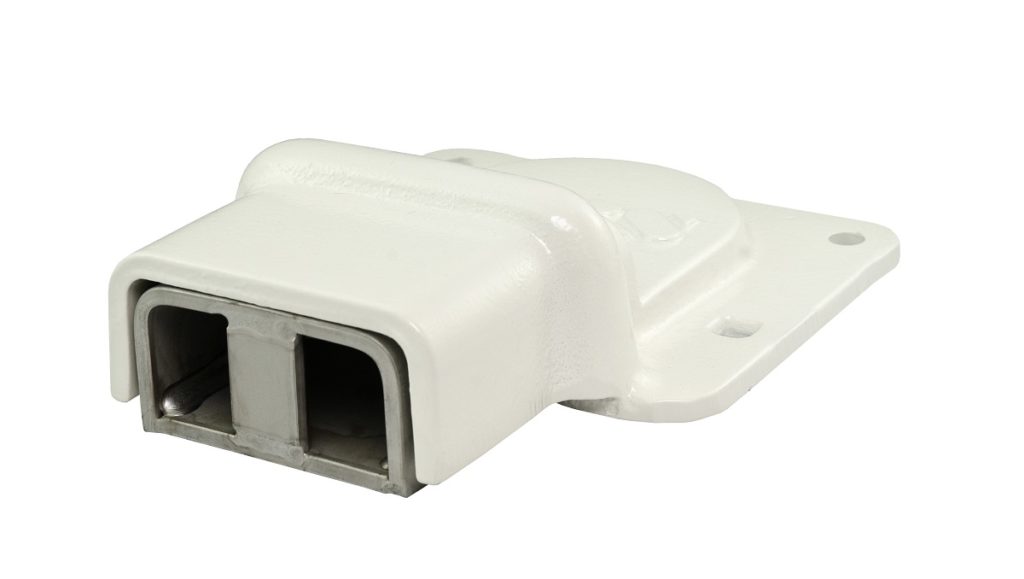

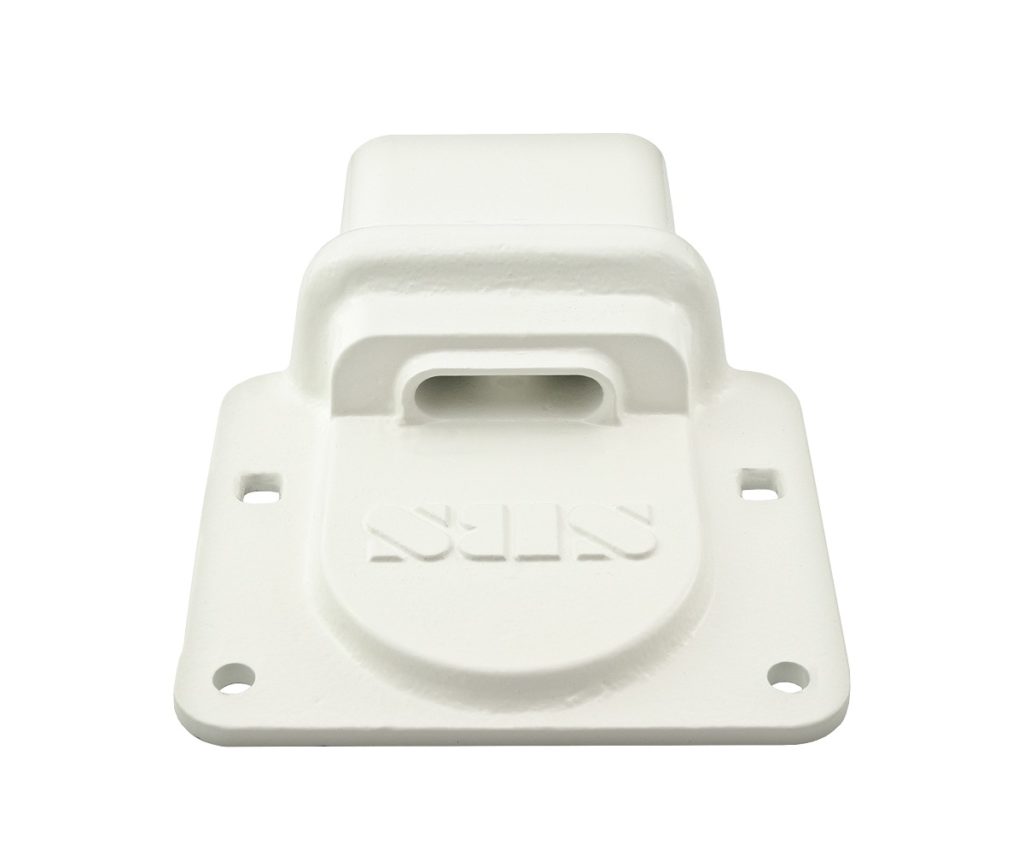

-Upper part-cast, which is mounting on the trailer door.

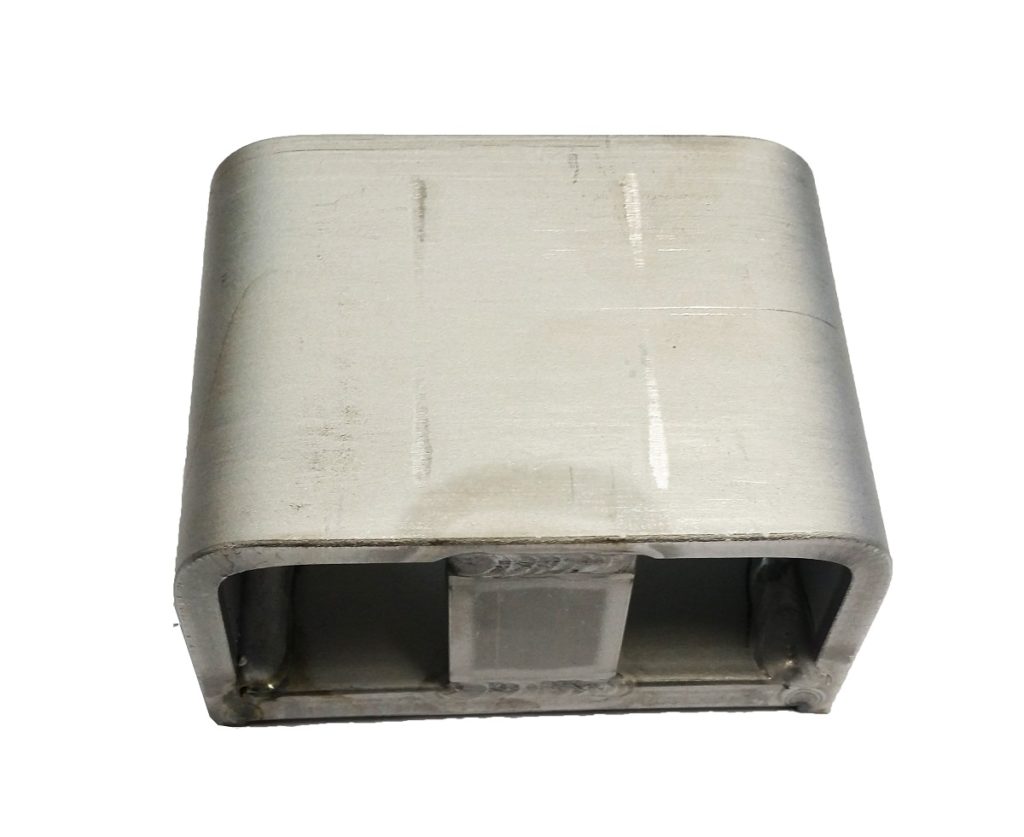

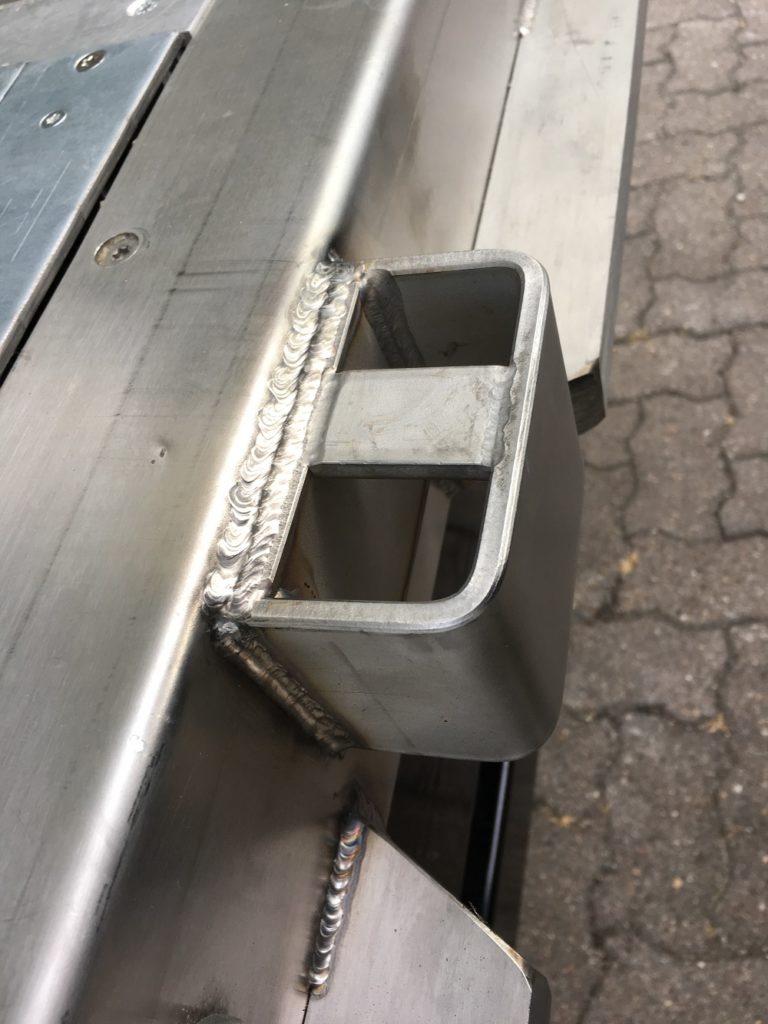

-Bottom part-silver, which is welding or mounting on a bottom rame the trailer.

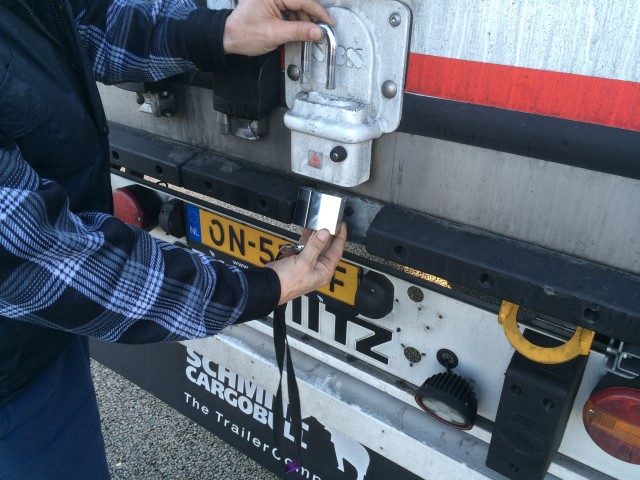

SBS BDL Schmitz lock is a perfect for transport companies, where the trailer is swapped/exchanged between different transport companies, because every driver can blocking the BDL lock his own padlock. The goods are safety.

SBS SCHMITZ lock is equipped on one of three padlocks, to choose for the client:

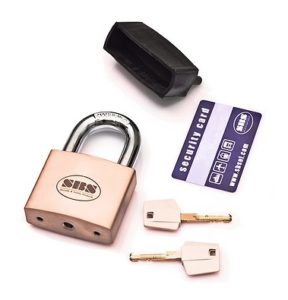

Charakterystyka kłódki SBS PL7000-kliknij zdjęcie

SBS PL7000 padlock ÔÇô is one of few padlocks available on market with removable shackle. Unic blocking mechanism can’t be break trough across the use generaly available tools on the market.

Mechanism developed by SBS Holland with upside down cylinder and stainless steel housing.  Those attribute affect on maximum security level.

The keys are equipped in key card, thanks to which we make a backup copies.

SBS PL 7000 padlocs are resistant on corrosion and drilling.

CEN 5 / certificate SKG ***

Every single lock with PL7000 padlock can be create on individual key code or in MasterKey system ( one master-key – opening all locks in system) or KeyAlike system (one key code for all locks ).

Charakterystyka k┼é├│dki ABLOY PL358 – kliknij zdj─Öcie

ABLOY PL358 padlock ÔÇô is one of the best padlock available on the market. Unic blocking mechanism can’t be break trough across the use generaly available tools on the market.┬á Her uniqueness is also due to pulling out the shackles, which makes a product suitable to many SBS lock constructions.

The composition of the steel mixture in the ABLOY PL358 padlock shackle contains an element – boron, which extra hardens steel. Mechanism developed by SBS Holland with upside down cylinder and stainless steel housing . ┬áThose attribute affect on maximum security level.

The keys are manufactured with a high security profile, without the possibility of unauthorized duplication and equipped with a key code card.

ABLOY PL 358 padlock are resistant on corrosion and drilling.

CEN 5 / certificate SKG ***



Charakterystyka k┼é├│dki ABLOY SWP PLM358 – kliknij zdj─Öcie





ABLOY SWP PLM358┬á (Super Water Proof) padlock – very durable padlock with removable shackle – 5 acc. safety class to standards EN12320, additionaly sealed at the top and bottom against water, dust and sand. (SWP).

SWP – it’s a amazing solution where all the parts are tightly protected to provide an opportunity in work even in the most difficult conditions.┬á SWP is perfect security even when it is constantly exposed to extremely high or low temperatures,┬á stanowi doskona┼ée zabezpieczenie, nawet gdy nara┼╝ony jest stale na ekstremalnie wysok─ů lub nisk─ů temperatur─Ö, washing by salty water or the dust.┬á SWP system meets the standards IP68. The protection consist in placing inside the padlock┬á (form the top) o-ring made of high-quality EPDM rubber, which prevents water, dust and dirty from getting inside the padlock. At the bottom is installed specially sealed and profiled tap, screwed into the key hole. The cap is mounted on a spring to prevent it from being lost.



Every each locks can be made on individual key code or in MasterKey system ( one master key opening all the locks in system) or KeyAlike system ( one key code for all locks).

Key systems (optional):
Master Key System – the so-called general key system – a special key system made in such a way that with the use of one key you can open any number of locks specified by the Ordering Party. The Master Key system may consist of various types of cylinder (patent) inserts, padlocks or electronic locks in the case of RFiD cards. Master Key systems work well in all types of fleets of trucks because they eliminate a number of problems caused by an excessive number of keys in circulation (e.g. keychains, no control over duplicating keys by unauthorized persons, no possibility to quickly open the door in an emergency, etc. ). The access rights of individual keys in the system may be different. Master-Key is both simple systems characterized by a small number of doors and a simple access structure, as well as large systems containing many different groups of keys, subgroups and combinations. There are few practical limitations to the size and complexity of the system.
The master key system can be divided into 3 basic groups:
KEYED-ALIKE – unified cylinder system – all lock cylinders and padlocks as well as advanced electronic locks (RFiD or Ifob cards) are opened with the same key.
MASTER-KEY – master key system – the master key opens all locks in vans, containers or semi-trailers, while individual locks are opened only with individual keys.
GROUP MASTER-KEY – master key and group key system – designed for large transport fleets, etc. Depending on the organizational structure of the institution – there are several groups of keys in the system that are subject to the overriding Master key that supports the entire system.
